◆性能規范
|
公稱壓力PN |
2.5 |
4.0 |
6.4 |
16 |
25 |
32 |
MPa |
|
殼體試驗壓力 |
3.75 |
6.0 |
9.6 |
24 |
37.5 |
48 |
MPa |
|
高壓密封試驗壓力 |
2.75 |
4.4 |
7.04 |
17.6 |
27.5 |
35.2 |
MPa |
|
低壓氣密封試驗壓力 |
0.5-0.7 |
||||||
|
適用介質 |
C.l 水、油品、蒸汽 |
P銷酸類 |
R 銷酸類 |
||||
|
適用溫度 |
C、P、R I ≤450℃ ≤560℃ ≤540℃ |
||||||
|
PN |
PN2.5(25) |
PN4.0 |
PN6.4(64) |
PN16(160) |
PN25(250) |
PN32(320) |
|
型號
|
J23W-25 J23H-25 J23W-25I J23H-25I J23W-25P |
J23W-40 J23H-40 J23W-40P J23W-64R |
J23W-64 J23W-64 J23W-64P J23W-64R |
J23W-60III J23W-160 J23W-160P J23W-160R |
J23W-250 J23H-250 J23W-250I J23H-250I J23W-250P |
J23W-320 J23H-320I J23W-320P J23W-320R |
|
PN |
d |
H |
H1 |
L |
Do |
|
6 |
12 |
112 |
122 |
62 |
65 |
|
10 |
14 |
124 |
134 |
76 |
65 |
|
15 |
22 |
145 |
160 |
90 |
100 |
|
20 |
28 |
160 |
160 |
100 |
100 |
|
25 |
34 |
185 |
210 |
105 |
100 |

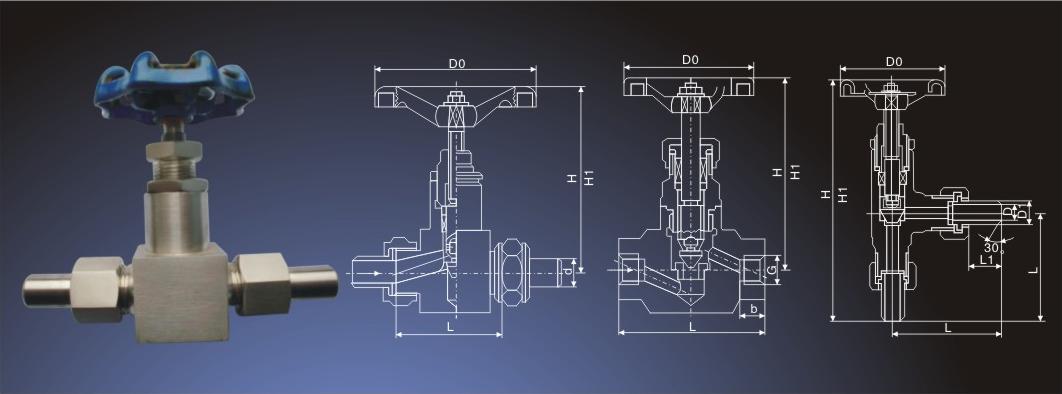

◆主要外形連接尺寸
|
型號 |
DN |
G(in) |
L |
b |
H1 |
H2 |
Do |
|
J13H-25 J13H-40 J13W-25P J13W-40P |
15 |
1/2 |
90 |
18 |
190 |
201 |
65 |
|
20 |
3/4 |
110 |
22 |
214 |
227 |
65 |
|
|
25 |
1 |
130 |
26 |
235 |
250 |
80 |
|
|
32 |
5/4 |
160 |
27 |
267 |
283 |
100 |
|
|
40 |
3/2 |
190 |
30 |
305 |
327 |
120 |
|
|
50 |
2 |
220 |
35 |
328 |
353 |
140 |
|
|
J13H40 J13H-160 J13W-320 J13W-40P J13W-160P J13W-320P |
15 |
1/2 |
90 |
18 |
190 |
201 |
65 |
|
20 |
3/4 |
110 |
22 |
214 |
227 |
65 |
|
|
25 |
1 |
130 |
26 |
235 |
250 |
80 |
|
|
32 |
5/4 |
160 |
27 |
267 |
283 |
100 |
|
|
40 |
3/2 |
190 |
30 |
305 |
327 |
120 |
|
|
50 |
2 |
220 |
35 |
328 |
353 |
140 |
|
型號 |
DN |
D |
D1 |
L |
L1 |
H1 |
H2 |
Do |
|
J24N-25 J24N-40 J24H-150 J24W-25P J24W-160P |
6 |
9 |
14 |
71 |
20 |
152 |
158 |
65 |
|
10 |
12 |
18 |
71 |
22 |
172 |
180 |
80 |
|
|
15 |
16 |
22 |
93 |
26 |
285 |
292 |
120 |
|
|
20 |
22 |
28 |
107 |
31 |
335 |
345 |
140 |
|
|
25 |
27 |
34 |
118 |
32 |
355 |
368 |
140 |
