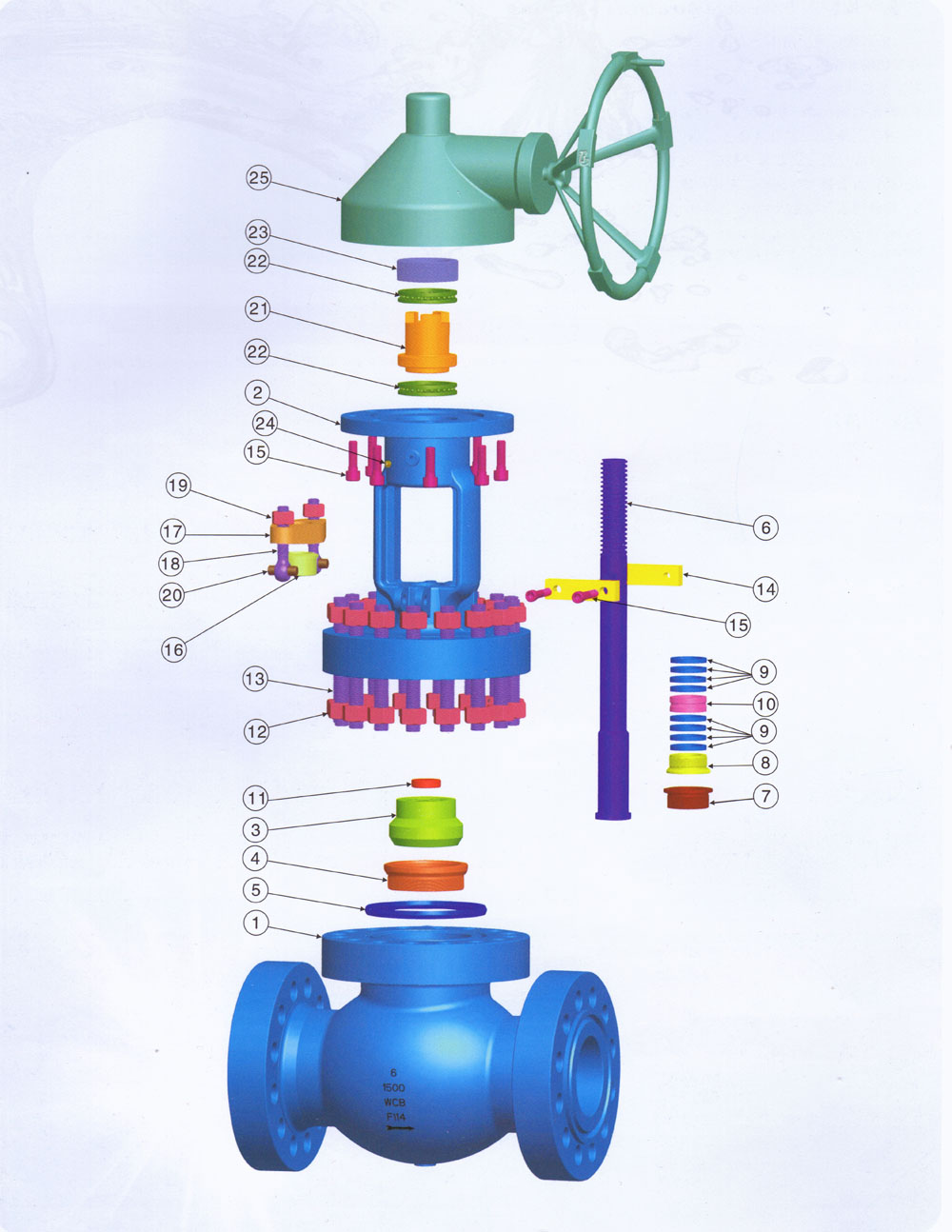

序號 |
名稱 |
Part Name |
序號 |
名稱 |
Part Name |
|
01 |
閥體 |
Body |
14 |
限位塊 |
Limit block |
|
02 |
閥蓋 |
Bonnet |
15 |
內六角螺釘 |
Socket head cap screw |
|
03 |
閥瓣 |
Disc |
16 |
填料壓套 |
Packing gland set |
|
04 |
閥座 |
Seat |
17 |
填料壓板 |
Packing pressure plate |
|
05 |
中法蘭墊片 |
Flange gasket |
18 |
活節螺栓 |
Eyelet bolt |
|
06 |
閥桿 |
Stem |
19 |
螺母 |
Nut |
|
07 |
閥瓣蓋 |
Disc bonnet |
20 |
圓柱銷 |
Cylindrical pin |
|
08 |
上密封座 |
Upper seal seat |
21 |
閥桿螺母 |
Stem Nut |
|
09 |
填料 |
Packing |
22 |
推力軸承 |
Thrust bearing |
|
10 |
隅環 |
Every ring |
23 |
鎖緊螺母 |
Lock nut |
|
11 |
閥瓣墊 |
Disc mat |
24 |
油杯 |
Oil cup |
|
12 |
螺母 |
Nut |
25 |
錐齒輪部件 |
Bevel gear parts |
|
13 |
螺柱 |
Stud |
一 |
一 |
一 |
